Key Features |
- Handy Table top design.
-
A core self-centering device.
-
Quickly dismantled into a compact size.
-
Special heat-treated, hardened steel blades.
|
Application Area |
- Mineral exploration
- Geo technical
|
|

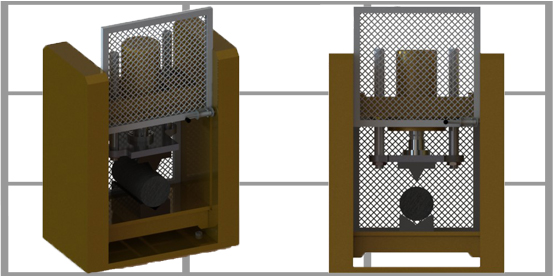

Eloquent Hydraulic Core Splitter was developed to support mineral exploration and geotechnical companies that analyze drill core samples for AQ,BQ,PQ,NQ,and HQ taken from diamond coring through exploration core drill from earth.
The Eloquent Hydraulic Core Splitter uses electric drive hydraulic power pack creates hydraulic crushing force on the core sample. The ram end is attched with a special heat-treated, hardened steel blades and V blaock to locate the core samples to split,a core sample of around up to 200 mm long can be taken and then split in half.
|
| |
CS-12.5 |
CS-20 |
CS-30 |
CS-50 |
| Power |
2.2 kw/3HP |
2.2 kw/3HP |
2.2 kw/3HP |
2.2 kw/3HP |
Electrical
Details |
215 V
/3~,50Hz,4
pole, |
215 V
/3~,50Hz,4
pole, |
215 V
/3~,50Hz,4
pole, |
215 V
/3~,50Hz,4
pole, |
|
| |
| |
CS-12.5 |
CS-20 |
CS-30 |
CS-50 |
Core
Diameter |
AQ ,BQ,PQ, and HQ |
| Core Length |
Up to max 200 mm |
Core
Mounting |
V -Block Type |
| Cutting Type |
High speed, high force edge impact with immediate
withdrawal of splitting edge |
|
| |
CS-12.5 |
CS-20 |
CS-30 |
CS-50 |
Cylinder Bore |
100 |
125 |
140 |
125 |
Cylinder
Stroke |
50 |
100 |
100 |
100 |
No of cylinder |
1 |
1 |
1 |
2 |
Working
pressure |
210 |
210 |
210 |
210 |
Max Force |
12.5 Ton |
20 T |
30 T |
50T |
 |
|
